Product Details


1-2ton electric pallet stacker

ELECTRIC PALLET STACKER FEATURE
TB series steering wheel pallet stacker, rated load capacity:1000-2500kg, Max. lift height: 4500mm, used for single face pallet;
1. With EPS steering system, easier to operation;
2. Electronic type braking;
3. To use intelligent charger,auto analysis the residual energy and optimizing the charging process, without manual operation and extend the battery working life effectively;
4. Speed limited for high position, to aviod the possibility of products' overturning when high speed in high position;
5. High strength overhead guard to protect the operator.

Product Parameters


वर्णन
Electric pallet stacker ( TB model)
Load capacity Kg
1000
1500
2000
Max. lifting height mm
1600
2500
5500
Wheel type
Polyurethane solid tire
Polyurethane solid tire
Polyurethane solid tire
Outside turning radius mm
1720
1720
1720
Min. intersecting aisle(1000*1000pallet)mm
2450
2450
2450
Battery V/Ah
24/210
24/210
24/210
Fork size(LxW)mm
1150*190
1150*190
1150*190

Product Introduction

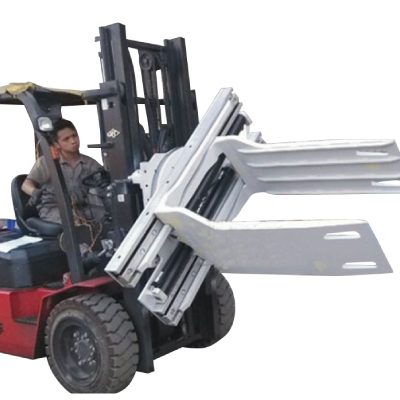

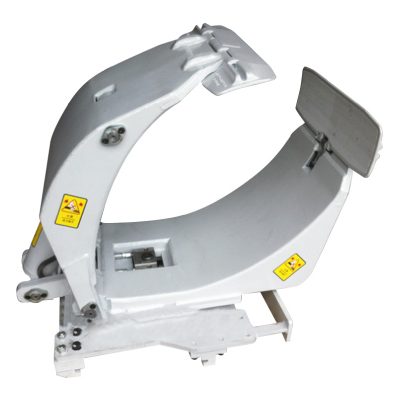

Electric straddle stacker with paper roll clamp
Noelift brand straddle electric pallet stacker with paper roll clamp. optional clamp: bale clamp, drum rotator

द्रुत विवरण


सर्त: नयाँ
उत्पत्ति स्थान: फुजियान, चीन (मुख्यभूमि)
ब्रान्ड नाम: HUAMAI
Model Number: TB20
प्रकार: संचालित प्यालेट ट्रक
पावर सोस: एसी मोटर
Rated Loading Capacity: 2000kg
Max. Lifting Height: 3500mm
Min. Lifting Height: 1600mm
Fork Length: 1150mm
Fork Width: 190mm
Overall Dimensions: 2455mm*1270mm*2080mm
Certification:CE, ISO9000,GOST
बिक्री पछि सेवा प्रदान गरीएको: ओभरसियस तेस्रो-पार्टी समर्थन उपलब्ध छ
Wheel type:Polyurethane solid tire
Charger V/A: 24/30
Battery V/Ah: 24/210
electric pallet stacker type: standing operate
electric pallet stacker brake: electric brake system
2ton electric stacker controller: American CURTIS
2ton electric stacker brake: electromagnetic brake
2ton electric stacker mast: single/duplex/thriplex ma




, ,
